8 Channel I2C Interface Relay Module for Arduino, Raspberry PI, Home Assistant YAML, ESP32, 10A Peak LED Indicator, SPDT Switch Contacts, AC DC Voltage Control, I2C I/O pin Expander

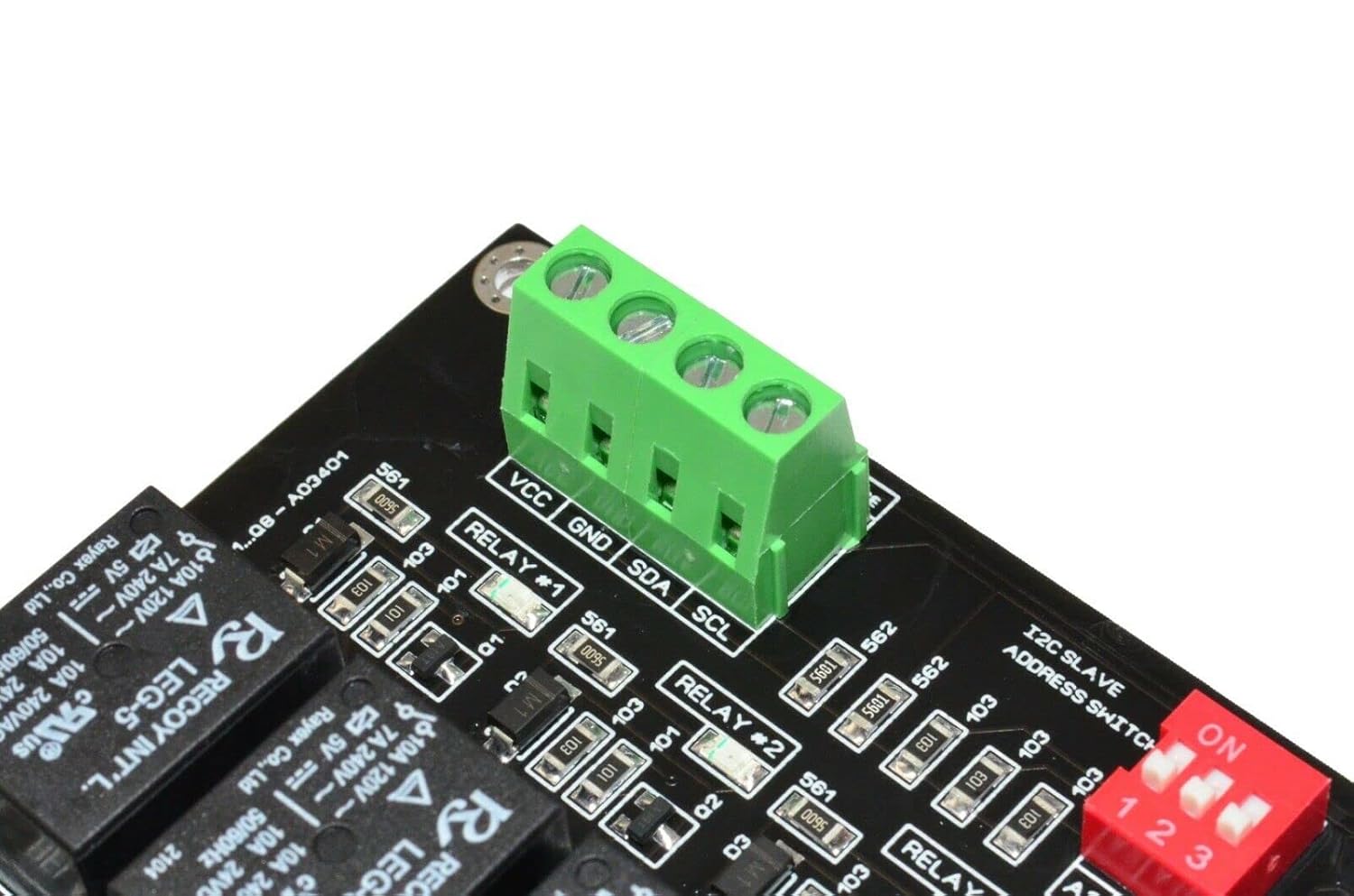

8 Channel Electromagnetic Relay Module with I2C Interface - PCB board dimension 72mm x 150mm - Relay contact resistance 100 milliohms max. ( initial value ) - Relay insulation resistance 100 MOhm min. (DC 500V) - Relay operation time 8 ms max - Relay release time 5ms max - Relay dielectric strength 1,500 VAC, 50/60Hz between all elements - Each board can be assigned an I2C address between 0x20...0x27 (0x38...0x3F) by the DIP switch - The logic power supply voltage should match the voltage levels on the I2C bus. The SDA and SCL lines are pulled up to VDD with 5.6k resistors on the relay module. Please contact with us for more resources

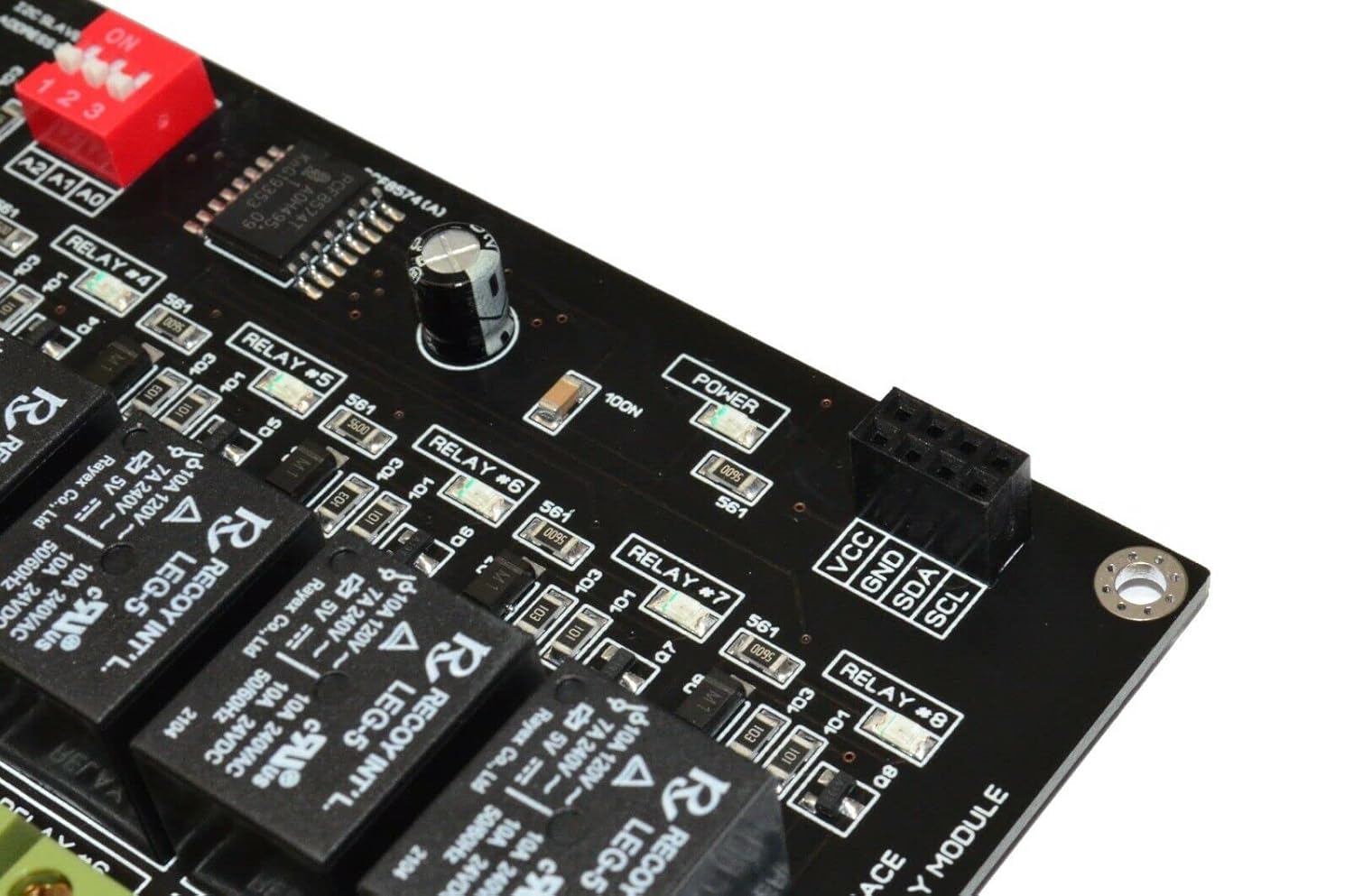

• LEDs indicators for each electromagnetic relay channel. Relays with SPDT switch contacts: Normally Open, Common, Normally Closed.
• Up to 8 boards can be connected to I2C bus line. The module contains an PCF8574 or PCF8574A chip. Working temperature range - 25 C ~ + 80 C
• Comes with different slave address 0x27 or 0x3F, depends on the batch. Relay expected life Mechanical - 10,000,000 operations min. Relay expected life Electrical - 100,000 operations min. at rated load
• Relay dielectric strength 750 VAC, 50/60Hz between contact. Maximum current per relay – 10A peak. Maximum current @5.0V – 700mA. Operation DC voltage – 3.3V and 5.0V
• AC controlling voltage range 100…240V AC, AC voltage frequency range 50…60Hz. compatible with plastic din rail holder, size 100mm
