LED Matrix Panel 64x32 Compatible with Arduino Raspberry Pi ESP32, 3mm Pitch 2048 Dots RGB LEDs Module Bare Screen, Allow The Display of animations of Colorful Text Images (192mm×96mm)
4.0 (89 items)
Limited Time SaleUS$21.17 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216118537 | Release Date | 2026/04/19 | List Price | US$14.12 | Model Number | 216118537 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Overview 64×32 RGB LED matrix panel, 2048 individual RGB LEDs, 3 mm pitch, supports Raspberry Pi, ESP32, Arduino. Features 1. 2048 individual RGB LEDs, full-colour display, adjustable brightness. 2. 64 x 32 pixels, 3 mm pitch, allows displaying text, colourful image, or animation. 3. 192 x 96 mm dimensions, moderate size, suitable for DIY desktop. 4. Onboard two HUB75 header, one for controller data input, one for output, chain support. 5. Provides open source development resources and tutorials, for use with Raspberry Pi, ESP32, Arduino, and so on. Specifications: Dimensions: 192 mm × 96 mm. Pixels: 64×32=2048 DOTS Pitch: 3 mm. Pixel form: 1R1G1B. Viewing angle: ≥160°. Control type: synchronization. Driving: 1/16 scan Header: HUB75. Power supply: 5V/2.5A (VH4 header input). Power: ≤12W. Note 1. This product is a bare screen and needs to be displayed with main control boards such as Raspberry Pi, ESP32 and Arduino. For details, please feel free to contact us for the product configuration list. 2. This product is not recommended with Raspberry Pi motherboard because the new version of Raspberry PI is not supported in wiring PI. If you must use Raspberry PI motherboard, please refer to github information: Demo, wiring reference. 3. Pico-RGB-Matrix-P3-64x32 base board (not included) is required when used with Raspberry Pi Pico. Development Resources https://www.waveshare.com/rgb-matrix-p3-64x32.htm?amazon Package Content 1. RGB-Matrix-P3-64x32 LED Matrix and Accessories x1 2. 16P wire ~30cm x1 3. Dark brown acrylic front panel x1 4. Power supply terminal adapter x1 5. Double-sided tape x1 6. Magnetic bolts 4 x 1
- 64×32 RGB LED matrix panel supports Raspberry Pi, Arduino, ESP32
- 2048 individual RGB LEDs, 64 x 32 pixels LED display, 3 mm pitch full-colour display, adjustable brightness, allows displaying text, colourful image, or animation

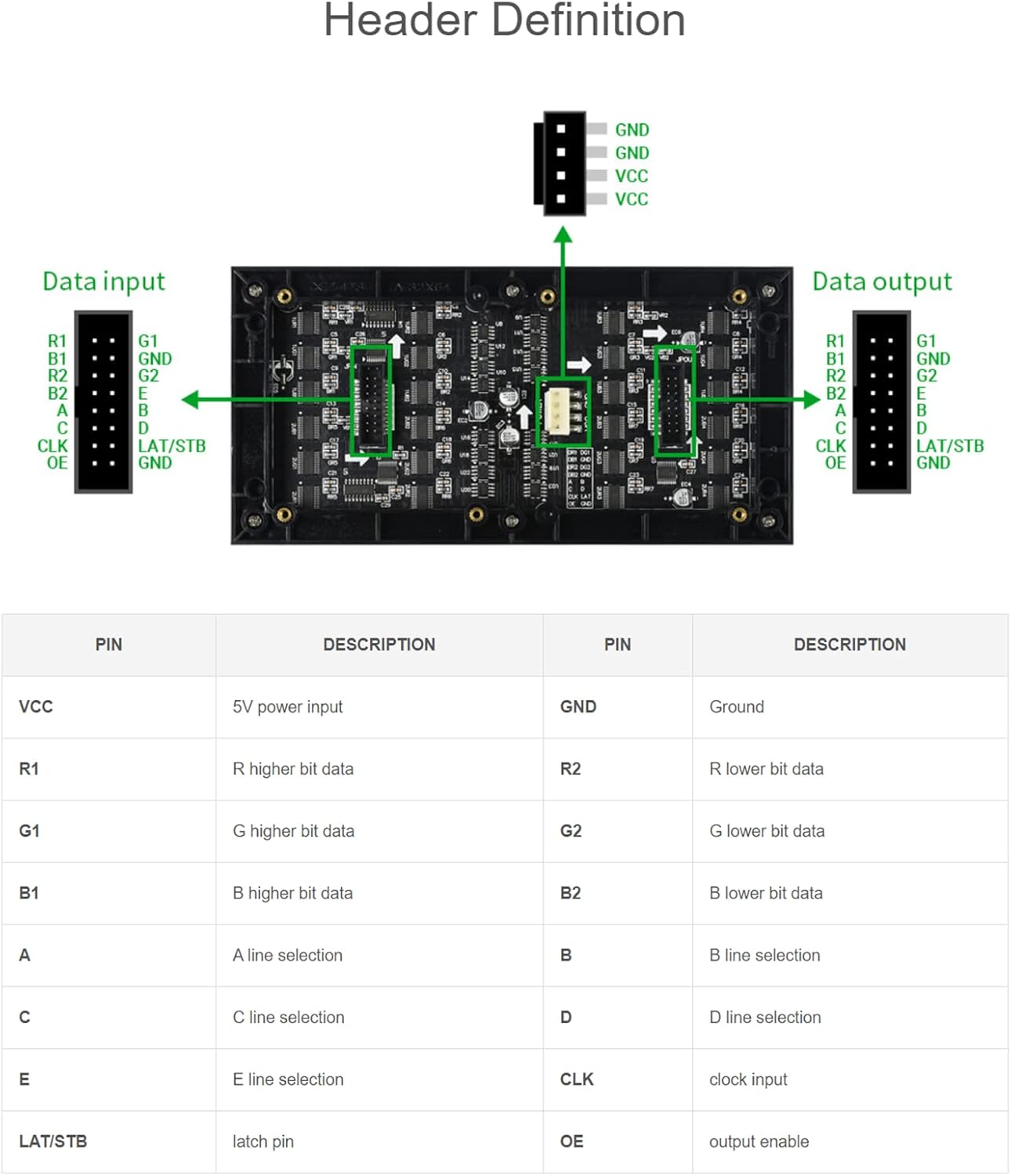

- Onboard two HUB75 header, one for controller data input, one for output, chain support, multi LED matrix panel can be chained together to build a larger panel via HUB75 input/output header. (Each RGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when their're chianed to display.)
- 192 x 96 mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Development Resources and Technical Support are provided, feel free to contact us if you have any problem!
| RAM | DDR4 |
|---|---|
| Brand | waveshare |
| Series | RGB-Matrix-P3-64x32 |
| Processor | ARMv7 |
| Item Weight | 11.6 ounces |
| Manufacturer | Waveshare |
| Processor Brand | Waveshare |
| Item model number | RGB-Matrix-P3-64x32 |
| Product Dimensions | 7.56 x 7.56 x 7.56 inches |
| Item Dimensions LxWxH | 7.56 x 7.56 x 7.56 inches |
| Number of USB 20 Ports | 2 |
